3036084 | Phoenix Contact
Protective conductor terminal, spring balancer connection, 0.08-4.0 mm², 6 pole, 22 A, 6 kV, gray, 3036084
Unit Price (€ / pc.)
7.1757 € *
Available: 0 pcs.
Available in 10 days: 3,015 pcs.
Leadtime: 2 Weeks **

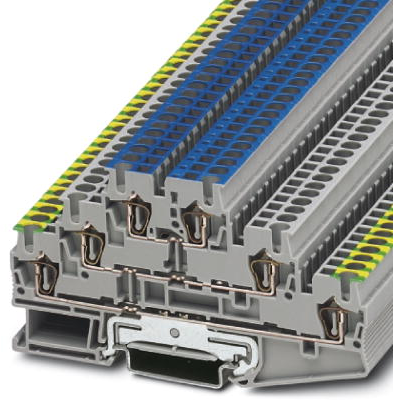

Spring cage ground terminal block, 3036084, Phoenix Contact
Spring cage ground terminal block, rated voltage: 500 V, nominal current: 22 A, connection method: Spring-cage connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Features
- The color coding of the PE and N levels helps to create clear and unambiguous potential distribution
Technical specifications
| Connection | spring balancer connection | |
| Number of terminals | 6 | |
| Version | protective conductor terminal | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 5.2 mm | |
| Colour | gray | |
| Height | 58 mm | |
| Length | 99.5 mm | |
| Cable cross-section | 0.08-4.0 mm² | |
| Rated current | 22 A | |
| Pin number | 6 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
