3036110 | Phoenix Contact

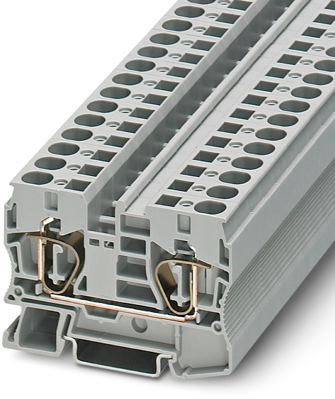

Through terminal block, spring balancer connection, 0.2-16 mm², 2 pole, 57 A, 8 kV, gray, 3036110
Unit Price (€ / pc.)
3.9389 € *
Available: 50 pcs.
Available in 10 days: 26,250 pcs.
Leadtime: 1 Week **
Total Price:
3.94 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9389 €
10 pcs.
3.4867 €
100 pcs.
3.0583 €
250 pcs.
2.9155 €
*incl. VAT plus shipping costs
**Subject to prior sale
Feed-through terminal block, 3036110, Phoenix Contact
Feed-through terminal block, Nominal voltage: 1000 V, Nominal current: 57 A, Connection method: Spring-cage connection, Rated cross section: 10 mm², Cross section: 0.2 mm² - 16 mm², Mounting type: NS 35/7,5, NS 35/15, Color: gray
Features
- The flexible options for reducing bridging in the CLIPLINE complete system can be found in "Accessories for the CLIPLINE complete modular terminal block system"
- The double bridge shaft not only enables individual chain bridging, but also reducing bridging to spring-cage terminal blocks with smaller cross sections
- Tested for railway applications
Technical specifications
| Anschluss | Federzuganschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 24 bis 6 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 10.2 mm | |
| Farbe | grau | |
| Höhe | 50.3 mm | |
| Länge | 71.5 mm | |
| Leiterquerschnitt | 0,2-16 mm² | |
| Nennstrom | 57 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
