3036466 | Phoenix Contact
Through terminal block, spring balancer connection, 0.2-10 mm², 3 pole, 41 A, 8 kV, gray, 3036466
Unit Price (€ / pc.)
4.5577 € *
Available: 0 pcs.
Available in 10 days: 9,158 pcs.
Leadtime: 2 Weeks **
Total Price:
4.56 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5577 €
10 pcs.
4.1888 €
50 pcs.
3.8199 €
100 pcs.
3.4391 €
*incl. VAT plus shipping costs
**Subject to prior sale

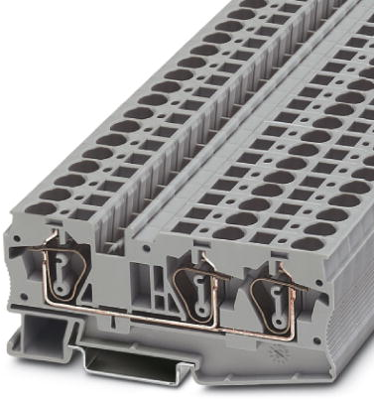

Feed-through terminal block, 3036466, Phoenix Contact
Feed-through terminal block, rated voltage: 1000 V, nominal current: 41 A, connection method: Spring-cage connection, 1 level, Rated cross section: 6 mm², cross section: 0.2 mm² - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Features
- The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories
- User-friendly implementation of all potential branching tasks
- Tested for railway applications
- Space-saving and practical multi-conductor connection without additional bridges
Technical specifications
| Connection | spring balancer connection | |
| Number of terminals | 3 | |
| Version | through terminal block | |
| AWG cross-section | AWG 24 to 8 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Width | 8.2 mm | |
| Colour | gray | |
| Height | 43.5 mm | |
| Length | 90.5 mm | |
| Cable cross-section | 0.2-10 mm² | |
| Rated current | 41 A | |
| Pin number | 3 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
