3036518 | Phoenix Contact
Component terminal block, spring balancer connection, 0.08-4.0 mm², 500 mA, 8 kV, gray, 3036518
Unit Price (€ / pc.)
5.4978 € *
Available: 0 pcs.
Available in 10 days: 500 pcs.
Leadtime: 1 Week **

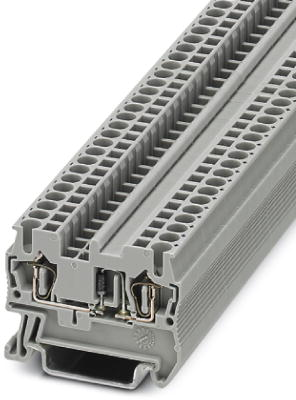

Component terminal block, 3036518, Phoenix Contact
Component terminal block, with integrated diode, rated voltage: 800 V, nominal current: 0.5 A, 1 level, connection method: Spring-cage connection, Rated cross section: 1 mm², cross section: 0. 08 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray.
Technical specifications
| Anschluss | Federzuganschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Bauelement-Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 28 bis 12 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 5.2 mm | |
| Farbe | grau | |
| Höhe | 36.5 mm | |
| Länge | 48.5 mm | |
| Leiterquerschnitt | 0,08-4,0 mm² | |
| Nennstrom | 500 mA | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
