3036521 | Phoenix Contact

Component terminal block, spring balancer connection, 0.08-4.0 mm², 3 pole, 500 mA, 8 kV, gray, 3036521

Order No.: 60P4695
EAN: 4017918823559
MPN:
3036521
ST 2,5-TWIN-DIO/R-L
Series: ST
3036521 Phoenix Contact Series Terminals

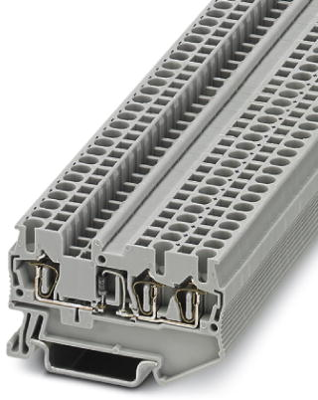

Image may differ
Unit Price (€ / pc.)
4.9028 € *
Available: 0 pcs.
Available in 10 days: 211 pcs.
Leadtime: 1 Week **
Total Price:
4.90 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.9028 €

Component terminal block, 3036521, Phoenix Contact

Component terminal block, with integrated diode, rated voltage: 800 V, nominal current: 0.5 A, connection method: Spring-cage connection, 1 level, Rated cross section: 1 mm², cross section: 0.08 mm²  - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Technical specifications
Anschluss Federzuganschluss
Anzahl der Klemmstellen 3
Ausführung Bauelement-Reihenklemme
AWG-Leiterquerschnitt AWG 28 bis 12
Bemessungsspannung 800 V
Bemessungsstoßspannung 8 kV
Breite 5.2 mm
Farbe grau
Höhe 36.5 mm
Länge 48.5 mm
Leiterquerschnitt 0,08-4,0 mm²
Nennstrom 500 mA
Polzahl 3-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
