3037449 | Phoenix Contact
Through terminal block, spring balancer connection, 0.08-4.0 mm², 4 pole, 24 A, 8 kV, white, 3037449
Unit Price (€ / pc.)
2.7489 € *
Available: 0 pcs.
Available in 10 days: 750 pcs.
Leadtime: 1 Week **
Total Price:
2.75 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7489 €
10 pcs.
2.5228 €
50 pcs.
2.2967 €
100 pcs.
2.0706 €
*incl. VAT plus shipping costs
**Subject to prior sale

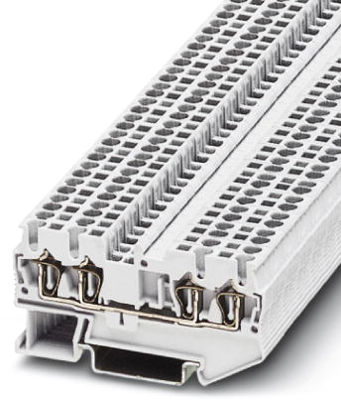

Feed-through terminal block, 3037449, Phoenix Contact
Feed-through terminal block, rated voltage: 800 V, nominal current: 24 A, connection method: Spring-cage connection, 1 level, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: white.
Technical specifications
| Anschluss | Federzuganschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 28 bis 12 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 5.2 mm | |
| Farbe | weiß | |
| Höhe | 36.5 mm | |
| Länge | 72 mm | |
| Leiterquerschnitt | 0,08-4,0 mm² | |
| Nennstrom | 24 A | |
| Polzahl | 4-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
