3038451 | Phoenix Contact

Disconnect terminal, spring balancer connection, 0.08-4.0 mm², 4 pole, 20 A, 6 kV, gray, 3038451

Order No.: 60P4670
EAN: 4017918890599
MPN:
3038451
ST 2,5-QUATTRO-TG
Series: ST

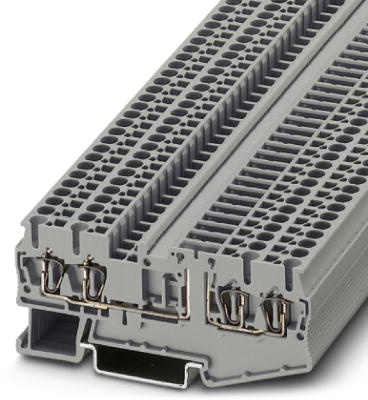

3038451 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
4.6172 € *
Available: 0 pcs.
Available in 10 days: 1,401 pcs.
Leadtime: 1 Week **
Total Price:
4.62 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6172 €
10 pcs.
4.2483 €
50 pcs.
3.8675 €
100 pcs.
3.4748 €
*incl. VAT plus shipping costs
**Subject to prior sale

Disconnect terminal block, 3038451, Phoenix Contact

Disconnect terminal block, rated voltage: 400 V, nominal current: 20 A, 1 level, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm²  - 4 mm²  , mounting: NS 35/7,5, NS 35/15, color: gray.

Features

  • Three and four-conductor terminal blocks can be used for multi-conductor connections
  • User-friendly wiring thanks to front connection
  • Tested for railway applications
  • Consistent and can be double bridged for all tasks in time-saving potential supply and distribution
Technical specifications
Anschluss Federzuganschluss
Anzahl der Klemmstellen 4
Ausführung Trennklemme
AWG-Leiterquerschnitt AWG 28 bis 12
Bemessungsspannung 400 V
Bemessungsstoßspannung 6 kV
Breite 5.2 mm
Farbe grau
Höhe 36.5 mm
Länge 84 mm
Leiterquerschnitt 0,08-4,0 mm²
Nennstrom 20 A
Polzahl 4-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
