3038477 | Phoenix Contact

Double level terminal, spring balancer connection, 0.08-4.0 mm², 22 A, 6 kV, gray, 3038477

Order No.: 60P4993
EAN: 4017918906917
MPN:
3038477
STTBS 2,5-PV
Series: STTBS
3038477 Phoenix Contact Series Terminals
Image may differ

Nicht geeignet für Neudesigns - Last time buy Hersteller: 30.06.2025

Unit Price (€ / pc.)
9.0202 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.02 € *
Price list
Quantity
Price per unit*
1 pcs.
9.0202 €
10 pcs.
8.3062 €
50 pcs.
7.5446 €
100 pcs.
6.7949 €
*incl. VAT plus shipping costs
**Subject to prior sale

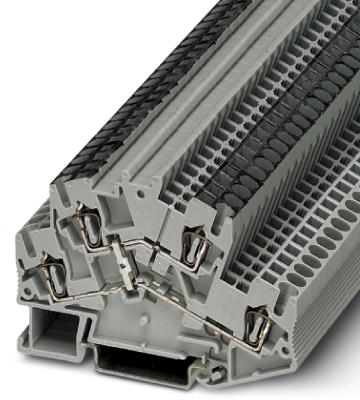

Double-level terminal block, 3038477, Phoenix Contact

Double-level terminal block, with equipotential bonder, rated voltage: 500 V, nominal current: 22 A, connection method: Spring-cage connection, 1st and 2nd level, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Features

  • Two large-surface labeling options
Technical specifications
Connection Federzuganschluss
Version Doppelstockklemme
AWG cross-section AWG 28 bis 12
Rated Voltage 500 V
Rated surge voltage 6 kV
Width 5.2 mm
Colour grau
Height 55 mm
Length 78 mm
Cable cross-section 0,08-4,0 mm²
Rated current 22 A
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
