3038600 | Phoenix Contact
Through terminal block, spring balancer connection, 0.08-1.5 mm², 2 pole, 17.5 A, 6 kV, gray, 3038600
Unit Price (€ / pc.)
3.1059 € *
Available: 0 pcs.
Available in 10 days: 500 pcs.
Leadtime: 1 Week **
Total Price:
3.11 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1059 €
10 pcs.
2.8560 €
50 pcs.
2.5942 €
100 pcs.
2.3324 €
*incl. VAT plus shipping costs
**Subject to prior sale

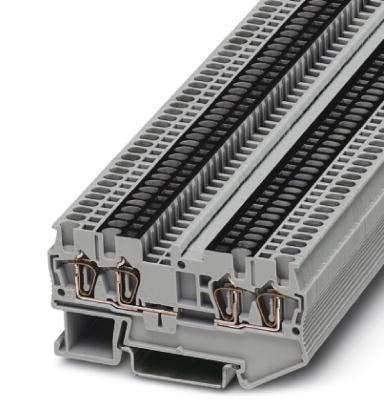

Feed-through terminal block, 3038600, Phoenix Contact
Feed-through terminal block, rated voltage: 500 V, nominal current: 17.5 A, connection method: Spring-cage connection, 1 level, Rated cross section: 1.5 mm², cross section: 0.08 mm² - 1.5 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Features
- Double marker carriers can be used to clearly mark the feed-through levels
- These four-conductor spring-cage terminal blocks feature an interrupted power rail in the terminal center
Technical specifications
| Connection | spring balancer connection | |
| Number of terminals | 2 | |
| Version | through terminal block | |
| AWG cross-section | AWG 28 to 16 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 4.2 mm | |
| Colour | gray | |
| Height | 36.5 mm | |
| Length | 72 mm | |
| Cable cross-section | 0.08-1.5 mm² | |
| Rated current | 17.5 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
