3040290 | Phoenix Contact
Plug, spring balancer connection, 0.08-4.0 mm², 5 pole, 24 A, 6 kV, gray, 3040290
Unit Price (€ / pc.)
5.5573 € *
Available: 0 pcs.
Available in 10 days: 576 pcs.
Leadtime: 1 Week **

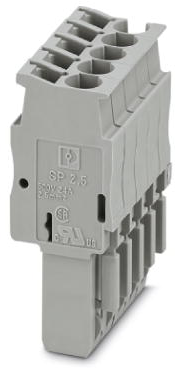

Plug, 3040290, Phoenix Contact
Plug, rated voltage: 500 V, nominal current: 24 A, number of positions: 5, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², color: gray.
Features
- Large-surface labeling option
- Practical coding option
Technical specifications
| Anschluss | Federzuganschluss | |
| Anzahl der Klemmstellen | 5 | |
| Ausführung | Stecker | |
| AWG-Leiterquerschnitt | AWG 28 bis 12 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 26 mm | |
| Farbe | grau | |
| Höhe | 39 mm | |
| Länge | 15.8 mm | |
| Leiterquerschnitt | 0,08-4,0 mm² | |
| Nennstrom | 24 A | |
| Polzahl | 5-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
