3040384 | Phoenix Contact
Plug, spring balancer connection, 0.08-4.0 mm², 14 pole, 24 A, 6 kV, gray, 3040384
Unit Price (€ / pc.)
17.7905 € *
Available: 0 pcs.
Available in 10 days: 37 pcs.
Leadtime: 1 Week **
Total Price:
17.79 € *
Price list
Quantity
Price per unit*
1 pcs.
17.7905 €
10 pcs.
16.3744 €
50 pcs.
14.8988 €
100 pcs.
13.4113 €
*incl. VAT plus shipping costs
**Subject to prior sale

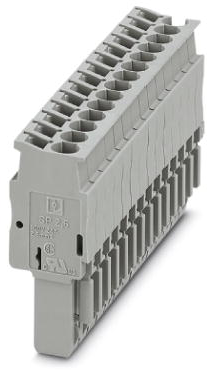

Plug, 3040384, Phoenix Contact
Plug, rated voltage: 500 V, nominal current: 24 A, number of positions: 14, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², color: gray.
Features
- Large-surface labeling option
- Practical coding option
Technical specifications
| Connection | spring balancer connection | |
| Number of terminals | 14 | |
| Version | plug | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 72.8 mm | |
| Colour | gray | |
| Height | 39 mm | |
| Length | 15.8 mm | |
| Cable cross-section | 0.08-4.0 mm² | |
| Rated current | 24 A | |
| Pin number | 14 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
