3040672 | Phoenix Contact
Double level terminal, spring-cage/plug-in connection, 0.08-4.0 mm², 4 pole, 22 A, 6 kV, blue, 3040672
Unit Price (€ / pc.)
3.9032 € *
Available: 0 pcs.
Available in 10 days: 677 pcs.
Leadtime: 1 Week **
Total Price:
3.90 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9032 €
10 pcs.
3.5819 €
50 pcs.
3.2606 €
100 pcs.
2.9393 €
*incl. VAT plus shipping costs
**Subject to prior sale

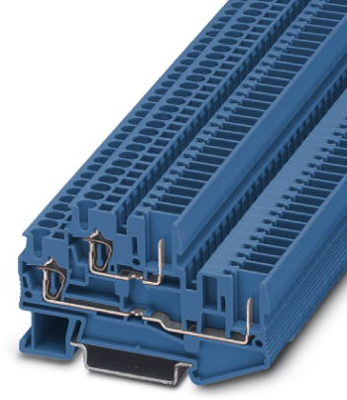

Double-level terminal block, 3040672, Phoenix Contact
Double-level terminal block, rated voltage: 500 V, nominal current: 22 A, connection method: Spring-cage/plug-in connection, 1st and 2nd level connection left, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², 1st and 2nd level connection right, mounting type: NS 35/15, NS 35/7,5, color: blue.
Features
- Potential routing on two levels
- Tested for railway applications
Technical specifications
| Anschluss | Zugfeder-/Steckanschluss | |
| Ausführung | Doppelstockklemme | |
| AWG-Leiterquerschnitt | AWG 28 bis 12 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 5.2 mm | |
| Farbe | blau | |
| Höhe | 47.5 mm | |
| Länge | 71.5 mm | |
| Leiterquerschnitt | 0,08-4,0 mm² | |
| Nennstrom | 22 A | |
| Polzahl | 4-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
