3040753 | Phoenix Contact

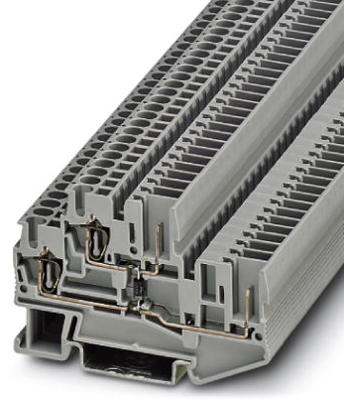

Component terminal block, spring-cage/plug-in connection, 0.08-4.0 mm², 24 A, 6 kV, gray, 3040753
Unit Price (€ / pc.)
6.4855 € *
Available: 0 pcs.
Available in 10 days: 100 pcs.
Leadtime: 4 Weeks **
Component terminal block, 3040753, Phoenix Contact
Component terminal block, with integrated diode, rated voltage: 500 V, nominal current: 24 A, connection method: Spring-cage/plug-in connection, 1st and 2nd level connection left, cross section: 0.08 mm² - 4 mm², 1st and 2nd level connection right, mounting type: NS 35/15, NS 35/7,5, color: gray.
Features
- The color coding of the PE and N levels helps to create clear and unambiguous potential distribution
- These mixed versions combine the advantages of double-level feed-through terminal blocks and ground terminal blocks of the same shape
- Potential routing on two levels
Technical specifications
| Anschluss | Zugfeder-/Steckanschluss | |
| Ausführung | Bauelement-Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 28 bis 12 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 5.2 mm | |
| Farbe | grau | |
| Höhe | 47.5 mm | |
| Länge | 71.5 mm | |
| Leiterquerschnitt | 0,08-4,0 mm² | |
| Nennstrom | 24 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
