3041626 | Phoenix Contact
COMBI jack, spring balancer connection, 0.08-4.0 mm², 13 pole, 24 A, 6 kV, gray, 3041626
Unit Price (€ / pc.)
13.4708 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
13.47 € *
Price list
Quantity
Price per unit*
1 pcs.
13.4708 €
10 pcs.
12.3998 €
50 pcs.
11.2812 €
100 pcs.
10.1507 €
*incl. VAT plus shipping costs
**Subject to prior sale

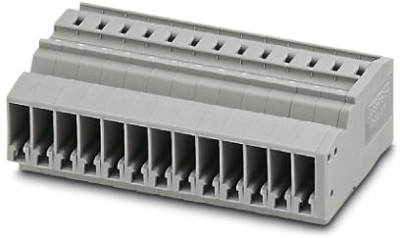

COMBI receptacle, 3041626, Phoenix Contact
COMBI receptacle, rated voltage: 500 V, nominal current: 24 A, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting type: on mounting plate, color: gray.
Features
- COMBI coupling for direct mounting
Technical specifications
| Connection | spring balancer connection | |
| Number of terminals | 1 | |
| Version | COMBI jack | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 67.6 mm | |
| Colour | gray | |
| Height | 21.8 mm | |
| Length | 37.2 mm | |
| Cable cross-section | 0.08-4.0 mm² | |
| Rated current | 24 A | |
| Pin number | 13 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
