Protective conductor terminal, spring-cage/plug-in connection, 0.08-4.0 mm², 3 pole, 6 kV, yellow/green, 3042120
Unit Price (€ / pc.)
5.2003 € *
Available: 0 pcs.
Available in 10 days: 1,700 pcs.
Leadtime: 1 Week **

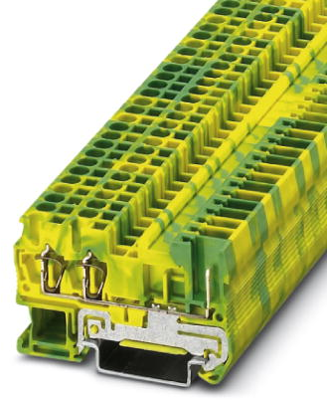

Spring cage ground terminal block, 3042120, Phoenix Contact
Spring cage ground terminal block, connection method: Spring-cage/plug-in connection, 1st level connection left, cross section: 0.08 mm² - 4 mm², 1st level connection right, mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- Same shape and pitch as the basic terminal blocks
- Tested for railway applications
Technical specifications
| Anschluss | Zugfeder-/Steckanschluss | |
| Anzahl der Klemmstellen | 3 | |
| Ausführung | Schutzleiterklemme | |
| AWG-Leiterquerschnitt | AWG 28 bis 12 | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 5.2 mm | |
| Farbe | gelb/grün | |
| Höhe | 36.5 mm | |
| Länge | 60.5 mm | |
| Leiterquerschnitt | 0,08-4,0 mm² | |
| Polzahl | 3-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
