3042201 | Phoenix Contact
COMBI jack, spring balancer connection, 0.08-4.0 mm², 1 pole, 24 A, 6 kV, yellow/green, 3042201
Unit Price (€ / pc.)
1.5351 € *
Available: 0 pcs.
Available in 10 days: 6,400 pcs.
Leadtime: 1 Week **
Total Price:
1.54 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5351 €
10 pcs.
1.4042 €
50 pcs.
1.2852 €
100 pcs.
1.1543 €
*incl. VAT plus shipping costs
**Subject to prior sale

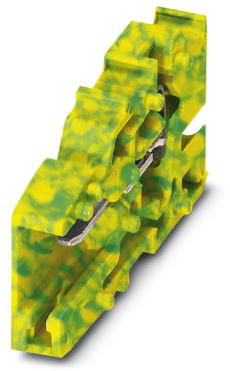

COMBI receptacle, 3042201, Phoenix Contact
COMBI receptacle, rated voltage: 500 V, nominal current: 24 A, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², color: green-yellow.
Features
- The ST-COMBI couplings for self-assembly provide solutions that users can implement themselves
- The coupling is assembled directly on site by snapping together single-position coupling elements
- Tested for railway applications
Technical specifications
| Anschluss | Federzuganschluss | |
| Anzahl der Klemmstellen | 1 | |
| Ausführung | COMBI-Kupplung | |
| AWG-Leiterquerschnitt | AWG 28 bis 12 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 5.2 mm | |
| Farbe | gelb/grün | |
| Höhe | 21.8 mm | |
| Länge | 37.2 mm | |
| Leiterquerschnitt | 0,08-4,0 mm² | |
| Nennstrom | 24 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
