3042269 | Phoenix Contact
COMBI jack, plug-in connection, 0.08-4.0 mm², 3 pole, 24 A, 6 kV, gray, 3042269
Unit Price (€ / pc.)
4.5220 € *
Available: 45 pcs.
Available in 10 days: 2,650 pcs.
Leadtime: 1 Week **
Total Price:
4.52 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5220 €
10 pcs.
4.1412 €
50 pcs.
3.7723 €
100 pcs.
3.4034 €
*incl. VAT plus shipping costs
**Subject to prior sale

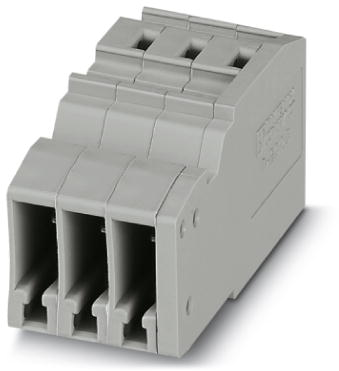

COMBI receptacle, 3042269, Phoenix Contact
COMBI receptacle, rated voltage: 500 V, nominal current: 24 A, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², color: gray.
Features
- Standard strain relief can be used
- Tested for railway applications
Technical specifications
| Anschluss | Steckanschluss | |
| Anzahl der Klemmstellen | 1 | |
| Ausführung | COMBI-Kupplung | |
| AWG-Leiterquerschnitt | AWG 28 bis 12 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 15.6 mm | |
| Farbe | grau | |
| Höhe | 18.8 mm | |
| Länge | 37.2 mm | |
| Leiterquerschnitt | 0,08-4,0 mm² | |
| Nennstrom | 24 A | |
| Polzahl | 3-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
