3042942 | Phoenix Contact
Plug, spring balancer connection, 0.08-6.0 mm², 6 pole, 32 A, 8 kV, gray, 3042942
Unit Price (€ / pc.)
12.4712 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
12.47 € *
Price list
Quantity
Price per unit*
1 pcs.
12.4712 €
10 pcs.
11.5906 €
50 pcs.
10.5553 €
100 pcs.
9.4962 €
*incl. VAT plus shipping costs
**Subject to prior sale

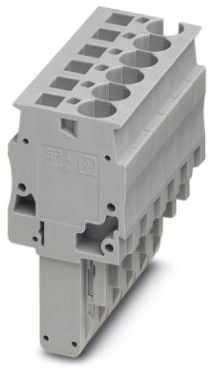

Plug, 3042942, Phoenix Contact
Plug, rated voltage: 800 V, nominal current: 32 A, number of positions: 6, connection method: Spring-cage connection, Rated cross section: 4 mm², cross section: 0.08 mm² - 6 mm², color: gray.
Features
- Large-surface labeling option
- Practical coding option
- Tested for railway applications
Technical specifications
| Anschluss | Federzuganschluss | |
| Anzahl der Klemmstellen | 6 | |
| Ausführung | Stecker | |
| AWG-Leiterquerschnitt | AWG 28 bis 10 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 37.2 mm | |
| Farbe | grau | |
| Höhe | 41.5 mm | |
| Länge | 21 mm | |
| Leiterquerschnitt | 0,08-6,0 mm² | |
| Nennstrom | 32 A | |
| Polzahl | 6-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
