3042968 | Phoenix Contact
Plug, spring balancer connection, 0.08-6.0 mm², 8 pole, 32 A, 8 kV, gray, 3042968
Unit Price (€ / pc.)
16.9218 € *
Available: 0 pcs.
Available in 10 days: 12 pcs.
Leadtime: 2 Weeks **
Total Price:
16.92 € *
Price list
Quantity
Price per unit*
1 pcs.
16.9218 €
10 pcs.
15.7318 €
25 pcs.
14.3157 €
50 pcs.
12.8877 €
*incl. VAT plus shipping costs
**Subject to prior sale

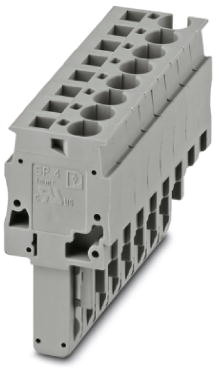

Plug, 3042968, Phoenix Contact
Plug, rated voltage: 800 V, nominal current: 32 A, number of positions: 8, connection method: Spring-cage connection, Rated cross section: 4 mm², cross section: 0.08 mm² - 6 mm², color: gray.
Features
- Large-surface labeling option
- Practical coding option
- Tested for railway applications
Technical specifications
| Version | Stecker | |
| Number of terminals | 8 | |
| Pin number | 8-polig | |
| Cable cross-section | 0,08-6,0 mm² | |
| AWG cross-section | AWG 28 bis 10 | |
| Rated surge voltage | 8 kV | |
| Rated current | 32 A | |
| Rated Voltage | 800 V | |
| Degree of soiling | 3 | |
| Length | 21 mm | |
| Width | 49.6 mm | |
| Height | 41.5 mm | |
| Connection | Federzuganschluss | |
| Colour | grau |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
