3044173 | Phoenix Contact

Protective conductor terminal, screw connection, 0.5-16 mm², 2 pole, 57 A, 8 kV, yellow/green, 3044173

Order No.: 09H9026
EAN: 4017918960452
MPN:
3044173
UT 10-PE
Series: UT
Phoenix Contact
3044173 Phoenix Contact Series Terminals

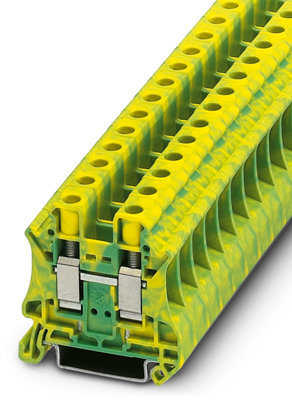

Image may differ
Unit Price (€ / pc.)
6.2356 € *
Available: 0 pcs.
Available in 10 days: 22,427 pcs.
Leadtime: 2 Weeks **
Total Price:
6.24 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2356 €
10 pcs.
5.4978 €
100 pcs.
4.8195 €
250 pcs.
4.6410 €
*incl. VAT plus shipping costs
**Subject to prior sale

Terminal blocks for TS 35 mounting rails, type Phoenix Contact CLIPLINE complete.

Uniform accessories for all wiring technologies. The terminal blocks of the CLIPLINE system can be combined as required. push-in terminal technology PIT for direct insertion of solid and flexible conductors with wire end ferrule as of 0.34 mm². Screw terminal technology UT for wiring multiple conductors and maximum contact forces. Cage clamp technology ST for vibration-sensitive applications. Quick terminating technology QT for reducing wiring times up to 60 %, as the conductor does not have to be stripped. The marked terminal blocks are approved for applications in potentially explosive areas; Insulation material: polyamide 6.6. Inflammability class UL 94 V-0.

Terminal blocks for TS 35 mounting rails, type CLIPLINE UT.

Screw terminals; Conductor cross-section solid/flexible wire: UT 2.5 = 0.14 to 4.0 mm²/0.14 to 2.5 mm², UT 4 = 0.14 to 6.0 mm²/0.14 to 4.0 mm², UT 6 = 0.2 to 10 mm²/0.2 to 6.0 mm², UT 10 = 0.5 to 16 mm²/0.5 to 10 mm². Rated surge voltage: 8.0 kV. Degree of soiling: 3. Overvoltage category: III. Insulation class: I. Connection to standard IEC/EN. Rated voltage: 1000 V. Dimensions: L 46.9 mm, H 47.5 mm,

PE ground terminal blocks, type UT.

Technical attributes (type, rated current, terminal width (B), color): UT 10-PE, 76 A, W 10.2 mm, green-yellow

Technical specifications
Connection screw connection
Number of terminals 2
Version protective conductor terminal
AWG cross-section AWG 20 to 6
Rated Voltage 800 V
Rated surge voltage 8 kV
Width 10.2 mm
Colour yellow/green
Height 47.5 mm
Length 47.7 mm
Cable cross-section 0.5-16 mm²
Rated current 57 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
