3044227 | Phoenix Contact
Through terminal block, screw connection, 1.5-50 mm², 2 pole, 125 A, 8 kV, red, 3044227
Unit Price (€ / pc.)
5.1884 € *
Available: 0 pcs.
Available in 10 days: 100 pcs.
Leadtime: 1 Week **

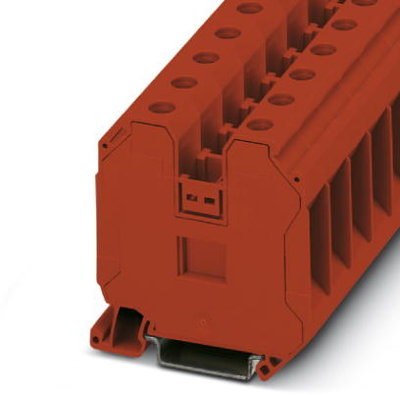

Feed-through terminal block, 3044227, Phoenix Contact
Feed-through terminal block, rated voltage: 1000 V, nominal current: 125 A, connection method: Screw connection, Rated cross section: 35 mm², cross section: 1.5 mm² - 50 mm², mounting type: NS 35/7,5, NS 35/15, color: red.
Features
- The reducing bridges can be used to connect terminal blocks with different connection technologies
- The flexible options for reducing bridging in the CLIPLINE complete system can be found in "Accessories for the CLIPLINE complete modular terminal block system"
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 16 bis 1/0 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 16 mm | |
| Farbe | rot | |
| Höhe | 65.1 mm | |
| Länge | 61.2 mm | |
| Leiterquerschnitt | 1,5-50 mm² | |
| Nennstrom | 125 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | TR |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
