3044500 | Phoenix Contact

Through terminal block, screw connection, 0.14-6.0 mm², 3 pole, 32 A, 6 kV, blue, 3044500

Order No.: 60P5783
EAN: 4046356055390
MPN:
3044500
UT 4-TWIN BU
Series: UT
Phoenix Contact
3044500 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
2.8679 € *
Available: 0 pcs.
Available in 10 days: 423 pcs.
Leadtime: 1 Week **
Total Price:
2.87 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8679 €
10 pcs.
2.6418 €
50 pcs.
2.4038 €
100 pcs.
2.1658 €
*incl. VAT plus shipping costs
**Subject to prior sale

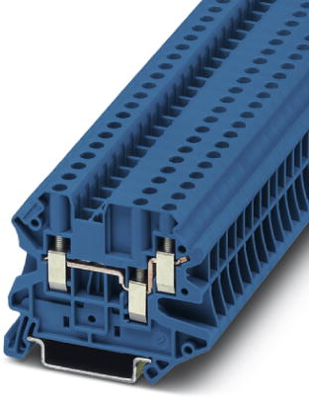

Feed-through terminal block, 3044500, Phoenix Contact

Feed-through terminal block, rated voltage: 500 V, nominal current: 32 A, connection method: Screw connection, 1 level, Rated cross section: 4 mm², cross section: 0.14 mm²  - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.

Features

  • The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories
  • User-friendly implementation of all potential branching tasks
  • Tested for railway applications
Technical specifications
Connection screw connection
Number of terminals 3
Version through terminal block
AWG cross-section AWG 26 to 10
Rated Voltage 500 V
Rated surge voltage 6 kV
Width 6.2 mm
Colour blue
Height 46.9 mm
Length 57.8 mm
Cable cross-section 0.14-6.0 mm²
Rated current 32 A
Pin number 3 pole
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
