3044597 | Phoenix Contact
Protective conductor terminal, screw connection, 0.14-6.0 mm², 4 pole, 6 kV, yellow/green, 3044597
Unit Price (€ / pc.)
6.0214 € *
Available: 0 pcs.
Available in 10 days: 9,449 pcs.
Leadtime: 1 Week **

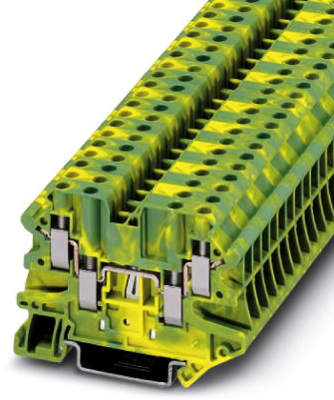

Ground modular terminal block, 3044597, Phoenix Contact
Ground modular terminal block, connection method: Screw connection, 1 level, cross section: 0. 14 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- These versions can be used as compact Potential distributor
- Tested for railway applications
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | Schutzleiter-Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 10 | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 6.2 mm | |
| Farbe | gelb/grün | |
| Höhe | 47.5 mm | |
| Länge | 65.4 mm | |
| Leiterquerschnitt | 0,14-6,0 mm² | |
| Polzahl | 4-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
