3044644 | Phoenix Contact

Disconnect terminal, screw connection, 0.14-4.0 mm², 2 pole, 22 A, 6 kV, gray, 3044644

Order No.: 60P5975
EAN: 4046356894074
MPN:
3044644
UTTB 2,5-TG-P/P
Series: UTTB
3044644 Phoenix Contact Series Terminals

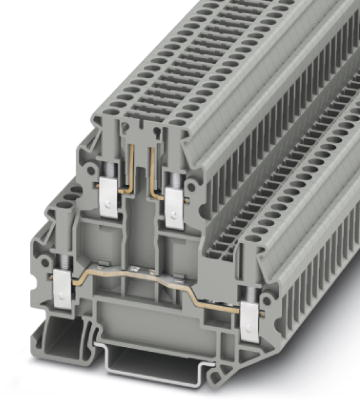

Image may differ
Unit Price (€ / pc.)
5.0813 € *
Available: 0 pcs.
Available in 10 days: 9 pcs.
Leadtime: 1 Week **
Total Price:
5.08 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.0813 €

Disconnect terminal block, 3044644, Phoenix Contact

Disconnect terminal block, With test socket screws for insertion of Test plug, rated voltage: 400 V, nominal current: 22 A, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.14 mm²  - 4 mm², connection method: Screw connection, Rated cross section: 2. 5 mm², cross section: 0.14 mm²  - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray.

Features

  • For a clear overview, each terminal point supports large-surface labeling
  • Standardized disconnect zone for the use of component plugs
Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Trennklemme
AWG-Leiterquerschnitt AWG 26 bis 12
Bemessungsspannung 400 V
Bemessungsstoßspannung 6 kV
Breite 5.2 mm
Farbe grau
Höhe 64.4 mm
Länge 69.9 mm
Leiterquerschnitt 0,14-4,0 mm²
Nennstrom 22 A
Polzahl 2-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
