3044665 | Phoenix Contact
Protective conductor double level terminal, screw connection, 0.14-4.0 mm², 4 pole, 6 kV, yellow/green, 3044665
Unit Price (€ / pc.)
7.1043 € *
Available: 0 pcs.
Available in 10 days: 4,016 pcs.
Leadtime: 1 Week **

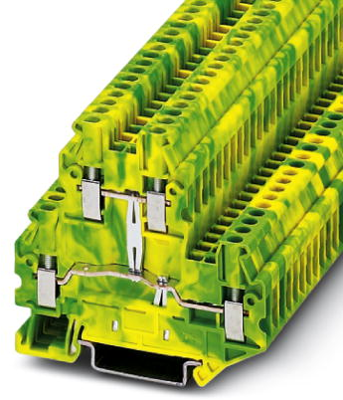

Protective conductor double level terminal block, 3044665, Phoenix Contact
Protective conductor double-level terminal block, number of connections: 4, connection method: Screw connection, cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- Since there are two function shafts per level, all potential distribution tasks can be implemented quickly
- For a clear overview, each terminal point supports large-surface labeling
- As an option, the levels can be connected using the FBS‑PV UT vertical bridge
- Tested for railway applications
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Schutzleiter-Doppelstockklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 12 | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 5.2 mm | |
| Farbe | gelb/grün | |
| Höhe | 65 mm | |
| Länge | 69.9 mm | |
| Leiterquerschnitt | 0,14-4,0 mm² | |
| Polzahl | 4-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
