3044670 | Phoenix Contact

Knife disconnect terminal, screw connection, 0.14-4.0 mm², 4 pole, 16 A, 6 kV, gray, 3044670

Order No.: 60P5923
EAN: 4046360000000
MPN:
3044670
UTT 2,5-2MT-P/P
Series: UTT

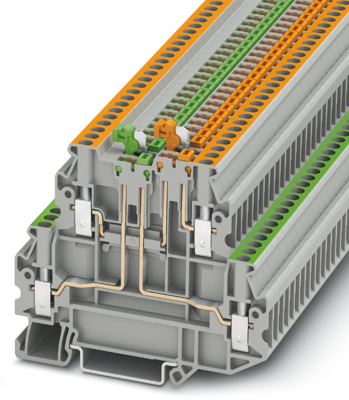

3044670 Phoenix Contact Series Terminals Image 1

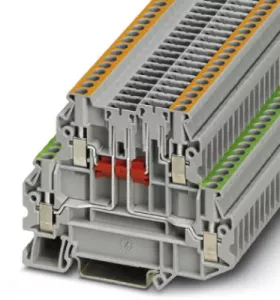

3044670 Phoenix Contact Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
10.6505 € *
Available: 514 pcs.
Available in 10 days: 6,546 pcs.
Leadtime: 1 Week **
Total Price:
532.53 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
10.6505 €

Knife-disconnect terminal block, 3044670, Phoenix Contact

Knife-disconnect terminal block with test socket screws for insertion of test plugs, Nominal voltage: 400 V, Nominal current: 16 A, Connection method: Screw connection, Rated cross section: 2.5 mm², Cross section: 0.14 mm² - 4 mm², Connection method: Screw connection, Rated cross section: 2.5 mm², Cross section: 0.14 mm² - 4 mm², Mounting: NS 35/7,5, NS 35/15, color: gray.

Features

  • For a clear overview, each terminal point supports large-surface labeling
  • Convenient separation of circuits, thanks to lever-type disconnect knife
Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 4
Ausführung Messertrennklemme
AWG-Leiterquerschnitt AWG 26 bis 12
Bemessungsspannung 400 V
Bemessungsstoßspannung 6 kV
Breite 5.2 mm
Farbe grau
Höhe 65 mm
Länge 80.1 mm
Leiterquerschnitt 0,14-4,0 mm²
Nennstrom 16 A
Polzahl 4-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
