3044759 | Phoenix Contact

Protective conductor terminal, screw connection, 0.14-6.0 mm², 4 pole, 8 kV, yellow/green, 3044759

Order No.: 60P5937
EAN: 4017918997083
MPN:
3044759
UTTB 4-PE
Series: UTTB
3044759 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
9.044 € *
Available: 0 pcs.
Available in 10 days: 4,758 pcs.
Leadtime: 1 Week **
Total Price:
9.04 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
9.044 €

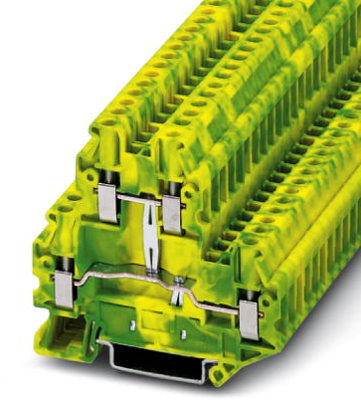

Ground modular terminal block, 3044759, Phoenix Contact

Ground modular terminal block, number of connections: 4, connection method: Screw connection, cross section: 0.14 mm²  - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: green/yellow.

Features

  • Since there are two function shafts per level, all potential distribution tasks can be implemented quickly
  • For a clear overview, each terminal point supports large-surface labeling
  • As an option, the levels can be connected using the FBS‑PV UT vertical bridge
  • Tested for railway applications
Technical specifications
Anschluss Schraubanschluss
Ausführung Schutzleiter-Reihenklemme
AWG-Leiterquerschnitt AWG 26 bis 10
Bemessungsstoßspannung 8 kV
Breite 6.2 mm
Farbe gelb/grün
Höhe 65 mm
Länge 69.9 mm
Leiterquerschnitt 0,14-6,0 mm²
Polzahl 4-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
