3045198 | Phoenix Contact

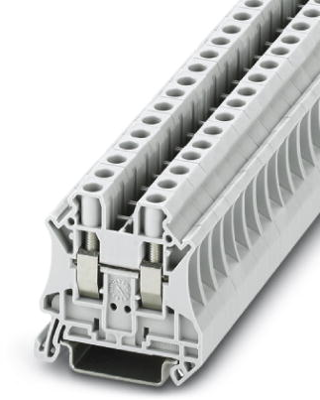

Feed-through terminal block, 3045198, Phoenix Contact

Feed-through terminal block, rated voltage: 1000 V, nominal current: 41 A, connection method: Screw connection, Rated cross section: 6 mm², cross section: 0.2 mm²  - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: white.

Features

• The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section
• The compact design enables user-friendly wiring in a small amount of space
• Optimum screwdriver guidance through closed screw shafts
• The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section
• Tested for railway applications
