3046235 | Phoenix Contact

Component terminal block, screw connection, 0.14-6.0 mm², 2 pole, 500 mA, 8 kV, gray, 3046235

Order No.: 60P5750
EAN: 4046356416269
MPN:
3046235
UT 4-PE/L-DIO/R-L P/P
Series: UT
3046235 Phoenix Contact Series Terminals

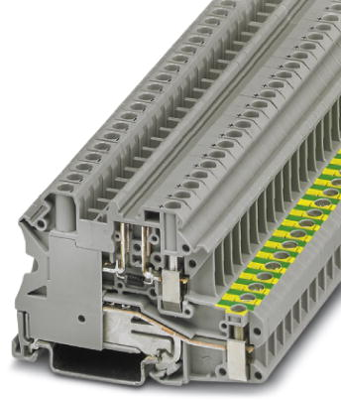

Image may differ
Unit Price (€ / pc.)
7.8302 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.83 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
7.8302 €

Component terminal block, 3046235, Phoenix Contact

Component terminal block, With test socket screws for insertion of Test plug, rated voltage: 500 V, nominal current: 0.5 A, connection method: Screw connection, Rated cross section: 1 mm², cross section: 0.14 mm²  - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Bauelement-Reihenklemme
AWG-Leiterquerschnitt AWG 26 bis 10
Bemessungsspannung 500 V
Bemessungsstoßspannung 8 kV
Breite 6.2 mm
Farbe grau
Höhe 47.5 mm
Länge 70.8 mm
Leiterquerschnitt 0,14-6,0 mm²
Nennstrom 500 mA
Polzahl 2-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
