3046249 | Phoenix Contact
Lever disconnect terminal, screw connection, 0.14-6.0 mm², 20 A, 6 kV, black/orange, 3046249
Unit Price (€ / pc.)
5.8072 € *
Available: 0 pcs.
Available in 10 days: 208 pcs.
Leadtime: 1 Week **

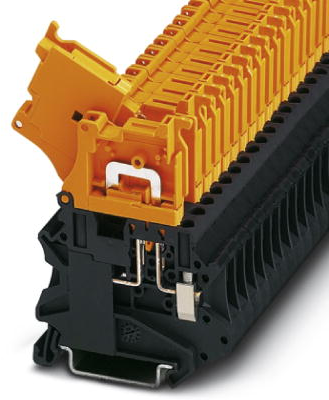

Lever-type disconnect terminal block, 3046249, Phoenix Contact
Lever-type disconnect terminal block, rated voltage: 500 V, nominal current: 20 A, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 6 mm², mounting: NS 35/7,5, NS 35/15, color: black/orange.
Features
- An extremely compact design
- Test connection on both sides in safety lever
- Tested for railway applications
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Hebeltrennklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 10 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 6.2 mm | |
| Farbe | schwarz/orange | |
| Höhe | 73 mm | |
| Länge | 57.8 mm | |
| Leiterquerschnitt | 0,14-6,0 mm² | |
| Nennstrom | 20 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
