3046579 | Phoenix Contact
Disconnect terminal, screw connection, 0.14-4.0 mm², 2 pole, 20 A, 6 kV, blue, 3046579
Unit Price (€ / pc.)
3.5343 € *
Available: 0 pcs.
Available in 10 days: 1,150 pcs.
Leadtime: 1 Week **
Total Price:
3.53 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5343 €
10 pcs.
3.2487 €
50 pcs.
2.9512 €
100 pcs.
2.6656 €
*incl. VAT plus shipping costs
**Subject to prior sale

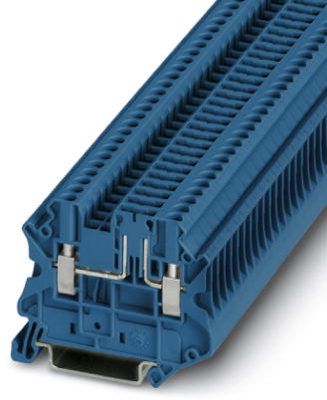

Disconnect terminal block, 3046579, Phoenix Contact
Disconnect terminal block, Current and voltage are determined by the plug used., rated voltage: 400 V, nominal current: 20 A, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, color: blue.
Technical specifications
| Connection | screw connection | |
| Number of terminals | 2 | |
| Version | disconnect terminal | |
| AWG cross-section | AWG 26 to 12 | |
| Rated Voltage | 400 V | |
| Rated surge voltage | 6 kV | |
| Width | 5.2 mm | |
| Colour | blue | |
| Height | 47.5 mm | |
| Length | 57.8 mm | |
| Cable cross-section | 0.14-4.0 mm² | |
| Rated current | 20 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
