3046760 | Phoenix Contact

Through terminal block, screw connection, 0.14-6.0 mm², 4 pole, 30 A, 8 kV, gray, 3046760

Order No.: 60P5940
EAN: 4046356105682
MPN:
3046760
UTTB 4-PE/N
Series: UTTB

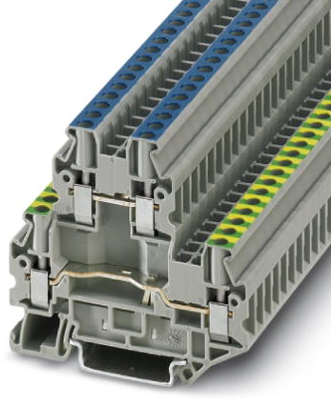

3046760 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
5.2241 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.22 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.2241 €

Feed-through terminal block, 3046760, Phoenix Contact

Feed-through terminal block, rated voltage: 800 V, nominal current: 30 A, number of connections: 4, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.14 mm²  - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 4
Ausführung Durchgangsklemme
AWG-Leiterquerschnitt AWG 26 bis 10
Bemessungsspannung 800 V
Bemessungsstoßspannung 8 kV
Breite 8.7 mm
Farbe grau
Höhe 64.4 mm
Länge 69.9 mm
Leiterquerschnitt 0,14-6,0 mm²
Nennstrom 30 A
Polzahl 4-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
