3047663 | Phoenix Contact

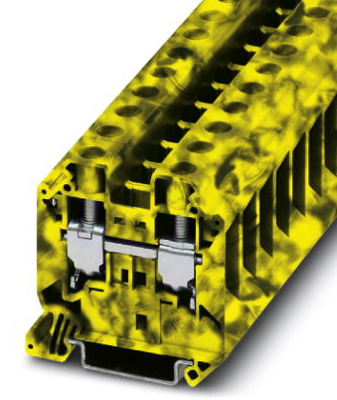

Through terminal block, screw connection, 1.5-25 mm², 2 pole, 76 A, 8 kV, yellow/black, 3047663
Unit Price (€ / pc.)
3.6176 € *
Available: 47 pcs.
Available in 10 days: 27 pcs.
Leadtime: 2 Weeks **
Total Price:
3.62 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6176 €
10 pcs.
3.3320 €
50 pcs.
3.0345 €
100 pcs.
2.7251 €
*incl. VAT plus shipping costs
**Subject to prior sale
Feed-through terminal block, 3047663, Phoenix Contact
Feed-through terminal block, rated voltage: 1000 V, nominal current: 76 A, connection method: Screw connection, Rated cross section: 16 mm², cross section: 1.5 mm² - 25 mm², mounting type: NS 35/7,5, NS 35/15, color: black/yellow.
Features
- The reducing bridges can be used to connect terminal blocks with different connection technologies
- Easy and time-saving potential supply and distribution of large currents and cross sections up to 35 mm² with reducing bridges
- The flexible options for reducing bridging in the CLIPLINE complete system can be found in "Accessories for the CLIPLINE complete modular terminal block system"
- Tested for railway applications
Technical specifications
| Connection | screw connection | |
| Number of terminals | 2 | |
| Version | through terminal block | |
| AWG cross-section | AWG 16 to 4 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Width | 12.2 mm | |
| Colour | yellow/black | |
| Height | 54.4 mm | |
| Length | 55.5 mm | |
| Cable cross-section | 1.5-25 mm² | |
| Rated current | 76 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | TR |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
