3048030 | Phoenix Contact

Component terminal block, screw connection, 0.2-4.0 mm², 32 A, 6 kV, gray, 3048030

Order No.: 60P5376
EAN: 4017918864033
MPN:
3048030
UKK 5-2 BE
Series: UKK
3048030 Phoenix Contact Series Terminals

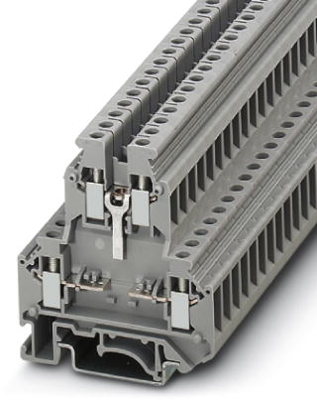

Image may differ
Unit Price (€ / pc.)
10.3768 € *
Available: 0 pcs.
Available in 10 days: 35 pcs.
Leadtime: 1 Week **
Total Price:
518.84 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
10.3768 €

Component terminal block, 3048030, Phoenix Contact

Component terminal block, Maximum width of components to be soldered in: 5 mm, rated voltage: 500 V, nominal current: 32 A, 1st and 2nd level, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.2 mm²  - 4 mm², mounting: NS 35/7,5, NS 35/15, NS 32, color: gray.

Features

  • Double-level diode terminal blocks with various forms of wiring are available for a wide range of applications
Technical specifications
Anschluss Schraubanschluss
Ausführung Bauelement-Reihenklemme
AWG-Leiterquerschnitt AWG 24 bis 12
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 6.2 mm
Farbe grau
Höhe 62 mm
Länge 56 mm
Leiterquerschnitt 0,2-4,0 mm²
Nennstrom 32 A
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
