3048467 | Phoenix Contact
Through terminal block, screw connection, 0.2-4.0 mm², 10 A, 4 kV, gray, 3048467
Unit Price (€ / pc.)
14.6608 € *
Available: 0 pcs.
Available in 10 days: 679 pcs.
Leadtime: 1 Week **

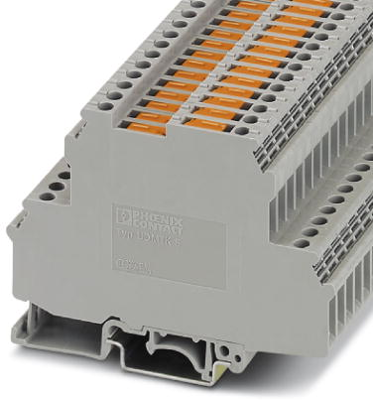

Feed-through terminal block, 3048467, Phoenix Contact
Feed-through terminal block, rated voltage: 400 V, nominal current: 10 A, 1st and 2nd level, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 4 mm², 2nd level, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, NS 32, color: gray.
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 24 bis 12 | |
| Bemessungsspannung | 400 V | |
| Bemessungsstoßspannung | 4 kV | |
| Breite | 6.2 mm | |
| Farbe | grau | |
| Höhe | 68.5 mm | |
| Länge | 93 mm | |
| Leiterquerschnitt | 0,2-4,0 mm² | |
| Nennstrom | 10 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | TR |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
