3048849 | Phoenix Contact

Four-wire universal terminal, screw connection, 0.14-6.0 mm², 4 pole, 32 A, 8 kV, gray, 3048849

Order No.: 60P5759
EAN: 4046356517584
MPN:
3048849
UT 4-QUATTRO HV RD
Series: UT

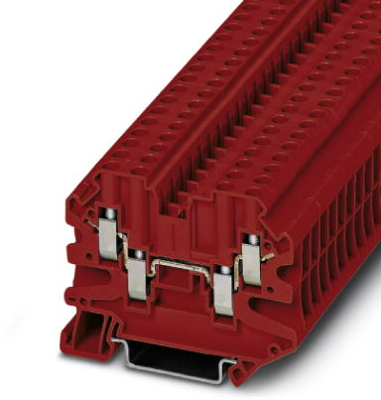

3048849 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
3.2963 € *
Available: 0 pcs.
Available in 10 days: 64 pcs.
Leadtime: 1 Week **
Total Price:
3.30 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2963 €
10 pcs.
3.0226 €
50 pcs.
2.7608 €
100 pcs.
2.4752 €
*incl. VAT plus shipping costs
**Subject to prior sale

Four-conductor universal terminal block, 3048849, Phoenix Contact

Four-conductor universal terminal block, rated voltage: 1000 V, nominal current: 32 A, connection method: Screw connection, 1 level, Rated cross section: 4 mm², cross section: 0.14 mm²  - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 4
Ausführung Vierleiter-Universalklemme
AWG-Leiterquerschnitt AWG 26 bis 10
Bemessungsspannung 1000 V
Bemessungsstoßspannung 8 kV
Breite 6.2 mm
Farbe grau
Höhe 50 mm
Länge 65.4 mm
Leiterquerschnitt 0,14-6,0 mm²
Nennstrom 32 A
Polzahl 4-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland CN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
