3049408 | Phoenix Contact

High current connector, bolt connection, 6.0-120 mm², 269 A, 8 kV, gray, 3049408

Order No.: 60P1549
EAN: 4046356184076
MPN:
3049408
HV M10/1
Series: HV
3049408 Phoenix Contact Series Terminals

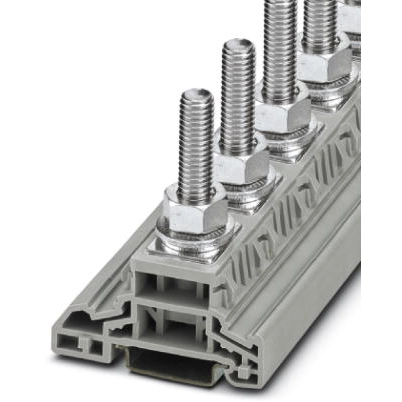

Image may differ
Unit Price (€ / pc.)
18.6592 € *
Available: 0 pcs.
Available in 10 days: 2 pcs.
Leadtime: 1 Week **
Total Price:
18.66 € *
Price list
Quantity
Price per unit*
1 pcs.
18.6592 €
10 pcs.
17.1598 €
50 pcs.
15.7913 €
100 pcs.
14.3633 €
*incl. VAT plus shipping costs
**Subject to prior sale

High current connector, 3049408, Phoenix Contact

High current connector, rated voltage: 1000 V, nominal current: 269 A, connection method: Bolt connection, 1 level, Rated cross section: 120 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Features

  • Comprehensive, supplementary accessories
  • For connecting up to four conductors
Technical specifications
Anschluss Bolzenanschluss
Anzahl der Klemmstellen 1
Ausführung Hochstromverbinder
Bemessungsspannung 1000 V
Bemessungsstoßspannung 8 kV
Breite 32 mm
Farbe grau
Höhe 74.6 mm
Länge 64 mm
Leiterquerschnitt 6,0-120 mm²
Nennstrom 269 A
Verschmutzungsgrad 3
Logistics
Ursprungsland CN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
