3049518 | Phoenix Contact

Bolt terminal, bolt connection, 0.5-2.5 mm², 24 A, 8 kV, gray, 3049518

Order No.: 60P4099
EAN: 4046356140775
MPN:
3049518
RTO 3
Series: RTO
3049518 Phoenix Contact Series Terminals

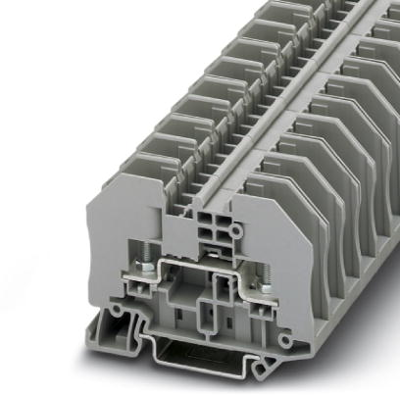

Image may differ
Unit Price (€ / pc.)
3.5462 € *
Available: 0 pcs.
Available in 10 days: 17 pcs.
Leadtime: 1 Week **
Total Price:
3.55 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.5462 €

Bolt connection terminal block, 3049518, Phoenix Contact

Bolt connection terminal block, Note: the BE-RT path extension is to be used for non-insulated cable lugs, rated voltage: 1000 V, nominal current: 24 A, connection method: Bolt connection, 1 level, Rated cross section: 2.5 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Features

  • Four bridge shafts per terminal block
  • Terminal point always freely accessible
Technical specifications
Anschluss Bolzenanschluss
Anzahl der Klemmstellen 2
Ausführung Bolzenklemme
AWG-Leiterquerschnitt AWG 20 bis 14
Bemessungsspannung 1000 V
Bemessungsstoßspannung 8 kV
Breite 12.3 mm
Farbe grau
Höhe 49.9 mm
Länge 66 mm
Leiterquerschnitt 0,5-2,5 mm²
Nennstrom 24 A
Verschmutzungsgrad 3
Logistics
Ursprungsland CN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
