3049615 | Phoenix Contact
Bolt terminal, bolt connection, 0.5-2.5 mm², 2 pole, 24 A, 8 kV, yellow/green, 3049615
Unit Price (€ / pc.)
7.5089 € *
Available: 0 pcs.
Available in 10 days: 47 pcs.
Leadtime: 1 Week **

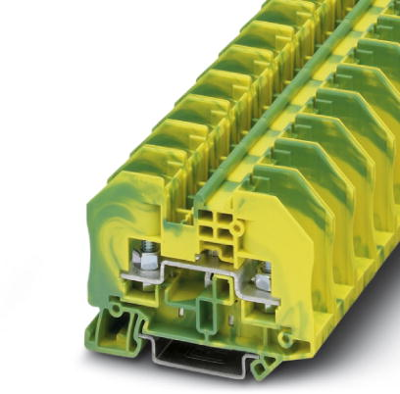

Ground terminal block, 3049615, Phoenix Contact
Ground terminal block with bolt connection, cross section: 0.1 - 2.5 mm², AWG: 26 - 14, width 12. 3 mm, color: Green-yellow.
Features
- Another labeling option
- Green-yellow housing
- Low contact resistance
- Corrosion-free terminal points
Technical specifications
| Ausführung | Bolzenklemme | |
| Anzahl der Klemmstellen | 2 | |
| Polzahl | 2-polig | |
| Leiterquerschnitt | 0,5-2,5 mm² | |
| AWG-Leiterquerschnitt | AWG 20 bis 14 | |
| Bemessungsstoßspannung | 8 kV | |
| Nennstrom | 24 A | |
| Bemessungsspannung | 1000 V | |
| Verschmutzungsgrad | 3 | |
| Länge | 66 mm | |
| Breite | 12.3 mm | |
| Höhe | 49.9 mm | |
| Anschluss | Bolzenanschluss | |
| Farbe | gelb/grün |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
