3049945 | Phoenix Contact
Through terminal block, bolt connection, 0.5-2.5 mm², 2 pole, 24 A, 8 kV, gray, 3049945
Unit Price (€ / pc.)
3.7842 € *
Available: 0 pcs.
Leadtime: 9 Weeks **

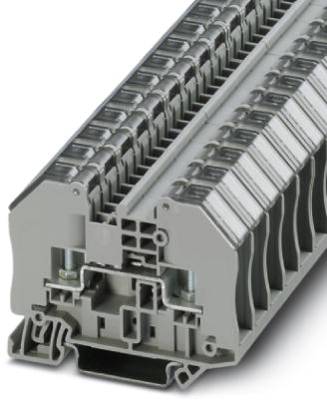

Feed-through terminal block, 3049945, Phoenix Contact
Feed-through terminal block with bolt connection technology and transparent safety contact hood, cross section: 0.1 - 2.5 mm², AWG: 26 - 14, width 12.3 mm, color: gray.
Features
- Four bridge shafts per terminal block
- Terminal point always freely accessible
Technical specifications
| Ausführung | Durchgangsklemme | |
| Anzahl der Klemmstellen | 2 | |
| Polzahl | 2-polig | |
| Leiterquerschnitt | 0,5-2,5 mm² | |
| AWG-Leiterquerschnitt | AWG 20 bis 14 | |
| Bemessungsstoßspannung | 8 kV | |
| Nennstrom | 24 A | |
| Bemessungsspannung | 1000 V | |
| Verschmutzungsgrad | 3 | |
| Länge | 66 mm | |
| Breite | 12.3 mm | |
| Höhe | 51 mm | |
| Anschluss | Bolzenanschluss | |
| Farbe | grau |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
