3050413 | Phoenix Contact

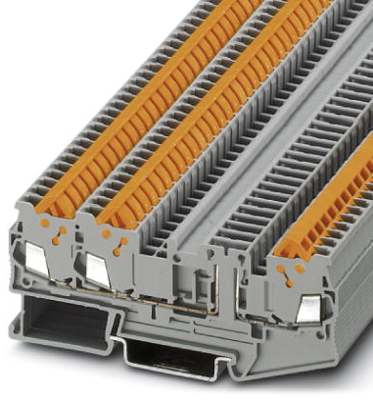

Disconnect terminal, IDC connection, 0.25-1.5 mm², 3 pole, 17.5 A, 6 kV, gray, 3050413

Order No.: 60P3917
EAN: 4046356079273
MPN:
3050413
QTC 1,5-TWIN-TG
Series: QTC
3050413 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
4.5577 € *
Available: 0 pcs.
Available in 10 days: 2,413 pcs.
Leadtime: 1 Week **
Total Price:
4.56 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.5577 €

Disconnect terminal block, 3050413, Phoenix Contact

Disconnect terminal block, The max. load current must not be exceeded by the total current of all connected conductors. Current and voltage are determined by the plug used., rated voltage: 400 V, nominal current: 17. 5 A, connection method: Quick connection, 1 level, Rated cross section: 1.5 mm², cross section: 0.25 mm²  - 1.5 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Features

  • The insulated P-FIX (1) feed-through connector enables the installation of a feed-through terminal of the same shape
  • The P-DI (2) isolating plug can be used in all Disconnect terminal blocks. Following disconnection, the P-DI can be "parked" back to front in the basic terminal block
  • The P-CO(3) component plug is used to accommodate different components such as resistors or diodes
  • Disconnect terminal block with universal disconnect zone for accommodating isolating plugs, feed-through connectors, component plugs, and fuse plugs
  • Tested for railway applications
Technical specifications
Anschluss Schneidklemmanschluss
Anzahl der Klemmstellen 3
Ausführung Trennklemme
AWG-Leiterquerschnitt AWG 24 bis 16
Bemessungsspannung 400 V
Bemessungsstoßspannung 6 kV
Breite 5.2 mm
Farbe grau
Höhe 39.3 mm
Länge 94 mm
Leiterquerschnitt 0,25-1,5 mm²
Nennstrom 17.5 A
Polzahl 3-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland CN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
