3060487 | Phoenix Contact

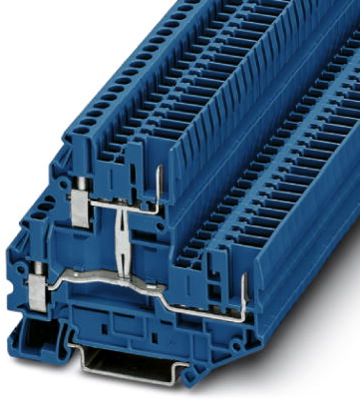

Double level terminal, screw/plug-in connection, 0.14-4.0 mm², 4 pole, 24 A, 6 kV, blue, 3060487

Order No.: 60P5956
EAN: 4046356157056
MPN:
3060487
UTTB 2,5/2P-PV BU
Series: UTTB
3060487 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
5.2360 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.2360 €

Double level terminal block, 3060487, Phoenix Contact

Double-level terminal block, with equipotential bonder, rated voltage: 500 V, nominal current: 24 A, connection method: Screw/plug-in connection, Rated cross section: 2.5 mm², cross section: 0. 14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.

Features

  • Potential routing on two levels
Technical specifications
Anschluss Schraub-/Steckanschluss
Anzahl der Klemmstellen 4
Ausführung Doppelstockklemme
AWG-Leiterquerschnitt AWG 26 bis 12
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 5.2 mm
Farbe blau
Höhe 64.4 mm
Länge 69.9 mm
Leiterquerschnitt 0,14-4,0 mm²
Nennstrom 24 A
Polzahl 4-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
