3060539 | Phoenix Contact
Through terminal block, screw/plug-in connection, 0.2-10 mm², 2 pole, 41 A, 8 kV, gray, 3060539
Unit Price (€ / pc.)
2.3443 € *
Available: 0 pcs.
Available in 10 days: 8,354 pcs.
Leadtime: 1 Week **
Total Price:
2.34 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3443 €
10 pcs.
2.1658 €
50 pcs.
1.9635 €
100 pcs.
1.7731 €
*incl. VAT plus shipping costs
**Subject to prior sale

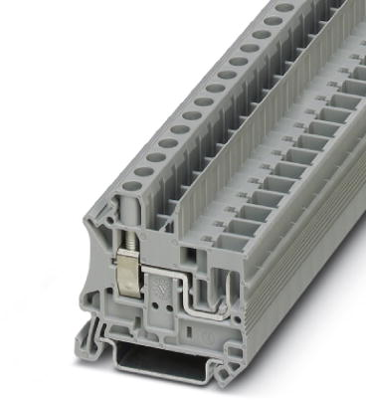

Feed-through terminal block, 3060539, Phoenix Contact
Feed-through terminal block, rated voltage: 1000 V, nominal current: 41 A, connection method: Screw/plug-in connection, Rated cross section: 6 mm², cross section: 0.2 mm² - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Technical specifications
| Anschluss | Schraub-/Steckanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 24 bis 8 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 8.2 mm | |
| Farbe | grau | |
| Höhe | 47.5 mm | |
| Länge | 49.1 mm | |
| Leiterquerschnitt | 0,2-10 mm² | |
| Nennstrom | 41 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
