3060568 | Phoenix Contact

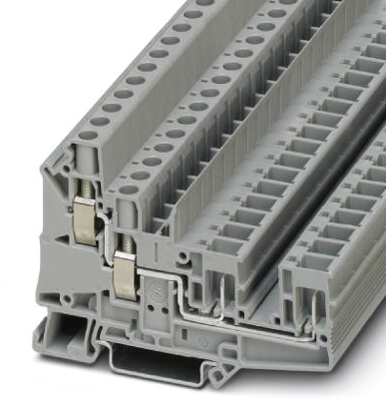

Through terminal block, screw/plug-in connection, 0.2-10 mm², 4 pole, 41 A, 6 kV, gray, 3060568
Unit Price (€ / pc.)
4.0222 € *
Available: 0 pcs.
Available in 10 days: 923 pcs.
Leadtime: 1 Week **
Feed-through terminal block, 3060568, Phoenix Contact
Feed-through terminal block, rated voltage: 1000 V, nominal current: 41 A, connection method: Screw/plug-in connection, Rated cross section: 6 mm², cross section: 0.2 mm² - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Technical specifications
| Anschluss | Schraub-/Steckanschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 24 bis 8 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 8.2 mm | |
| Farbe | grau | |
| Höhe | 60 mm | |
| Länge | 86.5 mm | |
| Leiterquerschnitt | 0,2-10 mm² | |
| Nennstrom | 41 A | |
| Polzahl | 4-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
