3061091 | Phoenix Contact

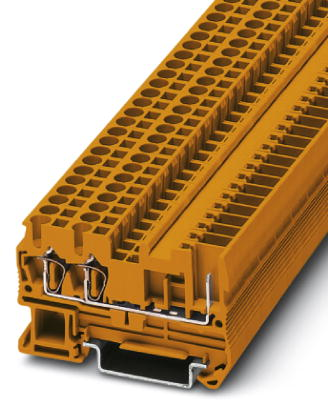

Through terminal block, spring-cage/plug-in connection, 0.08-4.0 mm², 1 pole, 24 A, 6 kV, orange, 3061091
Unit Price (€ / pc.)
2.0587 € *
Available: 0 pcs.
Available in 10 days: 2,660 pcs.
Leadtime: 1 Week **
Total Price:
2.06 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0587 €
10 pcs.
1.8921 €
50 pcs.
1.7255 €
100 pcs.
1.5589 €
*incl. VAT plus shipping costs
**Subject to prior sale
Feed-through terminal block, 3061091, Phoenix Contact
Feed-through terminal block, rated voltage: 500 V, nominal current: 24 A, connection method: Spring-cage/plug-in connection, 1st level connection left, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², 1st level connection right, mounting type: NS 35/7,5, NS 35/15, color: orange.
Technical specifications
| Connection | spring-cage/plug-in connection | |
| Number of terminals | 3 | |
| Version | through terminal block | |
| AWG cross-section | AWG 28 to 14 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |

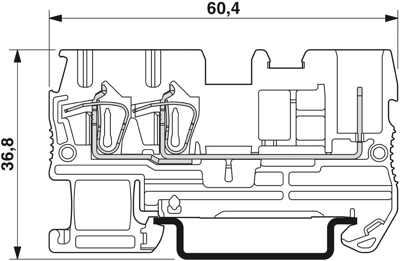

| Width | 5.2 mm | |
| Colour | orange | |
| Height | 36.5 mm | |
| Length | 60.5 mm | |
| Cable cross-section | 0.08-4.0 mm² | |
| Rated current | 24 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
