3061606 | Phoenix Contact
Plug, push-in connection, 0.5-10 mm², 5 pole, 41 A, 8 kV, gray, 3061606
Unit Price (€ / pc.)
7.1995 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

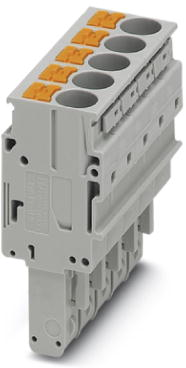

Plug, 3061606, Phoenix Contact
Plug, rated voltage: 1000 V, nominal current: 41 A, connection method: Push-in connection, 1 level, Rated cross section: 6 mm², cross section: 0.5 mm² - 10 mm², color: gray.
Features
- Large-surface labeling option
- The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
- Tested for railway applications
Technical specifications
| Connection | push-in connection | |
| Number of terminals | 5 | |
| Version | plug | |
| AWG cross-section | AWG 20 to 8 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Width | 41 mm | |
| Colour | gray | |
| Height | 49.3 mm | |
| Length | 21 mm | |
| Cable cross-section | 0.5-10 mm² | |
| Rated current | 41 A | |
| Pin number | 5 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
