3061839 | Phoenix Contact

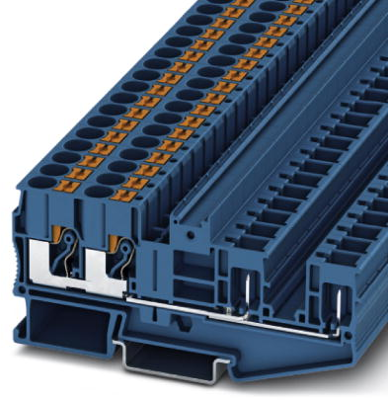

Through terminal block, push-in connection, 0.5-10 mm², 4 pole, 41 A, 8 kV, blue, 3061839
Unit Price (€ / pc.)
4.2245 € *
Available: 0 pcs.
Available in 10 days: 82 pcs.
Leadtime: 2 Weeks **
Total Price:
4.22 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2245 €
10 pcs.
3.8913 €
50 pcs.
3.5343 €
100 pcs.
3.1892 €
*incl. VAT plus shipping costs
**Subject to prior sale
Feed-through terminal block, 3061839, Phoenix Contact
Feed-through terminal block, rated voltage: 1000 V, nominal current: 41 A, connection method: Push-in / plug connection, 1 level, Rated cross section: 6 mm², cross section: 0.5 mm² - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- Tested for railway applications
- All terminal blocks provide an additional test connection
Technical specifications
| Connection | push-in connection | |
| Number of terminals | 4 | |
| Version | through terminal block | |
| AWG cross-section | AWG 20 to 8 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Width | 8.2 mm | |
| Colour | blue | |
| Height | 43.5 mm | |
| Length | 99.8 mm | |
| Cable cross-section | 0.5-10 mm² | |
| Rated current | 41 A | |
| Pin number | 4 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
