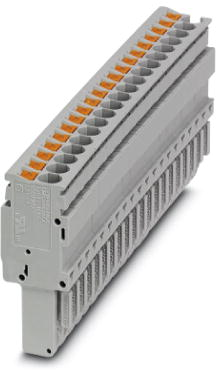

3061884 | Phoenix Contact
Plug, push-in connection, 0.14-4.0 mm², 20 pole, 24 A, 6 kV, gray, 3061884
Unit Price (€ / pc.)
16.8504 € *
Available: 0 pcs.
Available in 10 days: 1 pcs.
Leadtime: 1 Week **
Total Price:
16.85 € *
Price list
Quantity
Price per unit*
1 pcs.
16.8504 €
10 pcs.
15.5057 €
50 pcs.
14.1134 €
100 pcs.
12.6973 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plug, 3061884, Phoenix Contact
Plug, rated voltage: 500 V, nominal current: 24 A, connection method: Push-in connection, 1 level, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², color: gray.
Features
- Large-surface labeling option
- The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 20 | |
| Ausführung | Stecker | |
| AWG-Leiterquerschnitt | AWG 26 bis 12 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 104 mm | |
| Farbe | grau | |
| Höhe | 39 mm | |
| Länge | 15.8 mm | |
| Leiterquerschnitt | 0,14-4,0 mm² | |
| Nennstrom | 24 A | |
| Polzahl | 20-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
