3069469 | Phoenix Contact

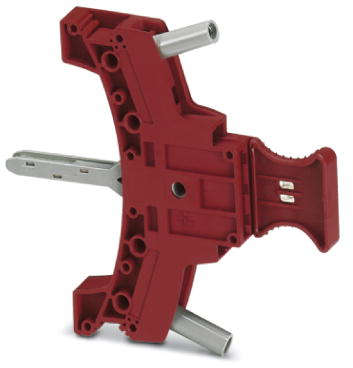

Test plug, screw connection, 0.5-2.5 mm², 1 pole, 24 A, 4 kV, red, 3069469
Unit Price (€ / pc.)
91.0826 € *
Available: 0 pcs.
Leadtime: On Request **
Test plug,, 3069469, Phoenix Contact
Test plug, rated voltage: 400 V, nominal current: 24 A, Rated cross section: 2.5 mm², color: red.
Features
- The integrated, robust switch contact is designed for the most stringent demands, and the use of high-quality materials ensures the transmission of signal currents, even after multiple actuations
- Cost-effective, thanks to the tailored, modular design and use of standardized CLIPLINE complete accessories
- Easy and time saving, thanks to functional grouping of switching operations
- Maximum safety with leading and automatic transformer short circuit
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Teststecker | |
| AWG-Leiterquerschnitt | AWG 20 bis 14 | |
| Bemessungsspannung | 400 V | |
| Bemessungsstoßspannung | 4 kV | |
| Breite | 9 mm | |
| Farbe | rot | |
| Länge | 86 mm | |
| Leiterquerschnitt | 0,5-2,5 mm² | |
| Nennstrom | 24 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
