3069958 | Phoenix Contact
Test plug, screw connection, 0.2-2.5 mm², 5 pole, 20 A, gray, 3069958
Unit Price (€ / pc.)
230.5744 € *
Available: 0 pcs.
Leadtime: On Request **

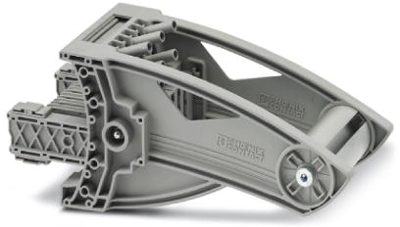

Test plug, 3069958, Phoenix Contact
Test plug, rated voltage: 400 V, nominal current: 20 A, Rated cross section: 2.5 mm², color: gray.
Features
- Space saving, thanks to offset test socket arrangement
- Cost-effective, thanks to the tailored, modular design and use of standardized CLIPLINE complete accessories
- Easy and time saving, thanks to functional grouping of switching operations
- Maximum safety with leading and automatic transformer short circuit
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Teststecker | |
| AWG-Leiterquerschnitt | AWG 20 bis 14 | |
| Bemessungsspannung | 400 V | |

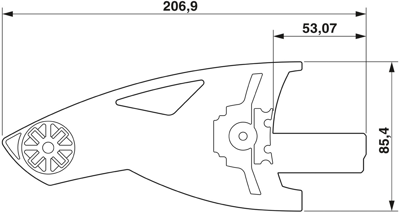

| Breite | 73.4 mm | |
| Farbe | grau | |
| Länge | 86 mm | |
| Leiterquerschnitt | 0,2-2,5 mm² | |
| Nennstrom | 20 A | |
| Polzahl | 5-polig |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
